CXL 900-6LW/l, 824-894 MHz  IoT

Download Data sheet:
ArticleNo/ P/N: 100000139
Radiotype: Baseantenner

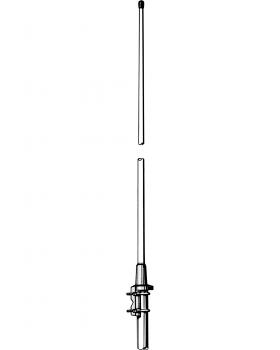

CXL 900-6LW/l, 824-894 MHz IoT

Collinear 6 dBd broad-banded IoT base station antenna. To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter. The cable can be led either on the outside or along the inside of the mast tube. Large bandwidth with respect to both SWR and gain. Highly suitable for duplex operation with large spacing between the TX and RX frequencies. The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, ensuring undisturbed performance in all climates. To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable
