G-CXL 70-1LW/hs 	460 - 510 MHz

Download Data sheet:
ArticleNo/ P/N: 100000271
Radiotype: Baseantenner

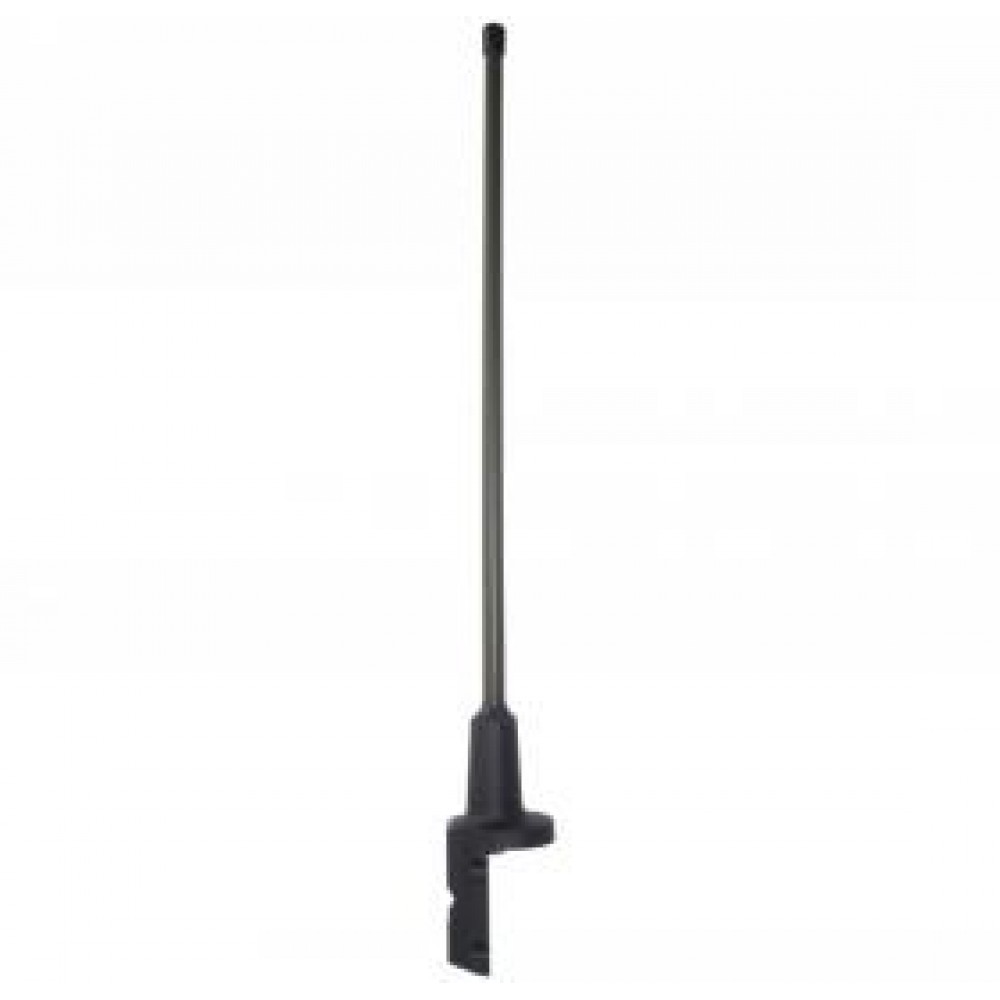

G-CXL 70-1LW/hs 460 - 510 MHz

G-CXL 70-1LW/… is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna which covers the 450 MHz band in three models. The carefully designed, broadbanded ½ λ-dipole radiating element is made of brass tube and sealed in a high-quality conical glass fibre tube with low wind-load. Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium. The cable can be led either on the outside or along the inside of the mast tube. Large bandwidth with respect to both SWR and gain. To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

Download Data sheet:
