PHY-TETRA-2-FME-380-410

Download Data sheet:
amphenol-procom_logo-3
ArticleNo/ P/N: 210001836
Radiotype: Combiner

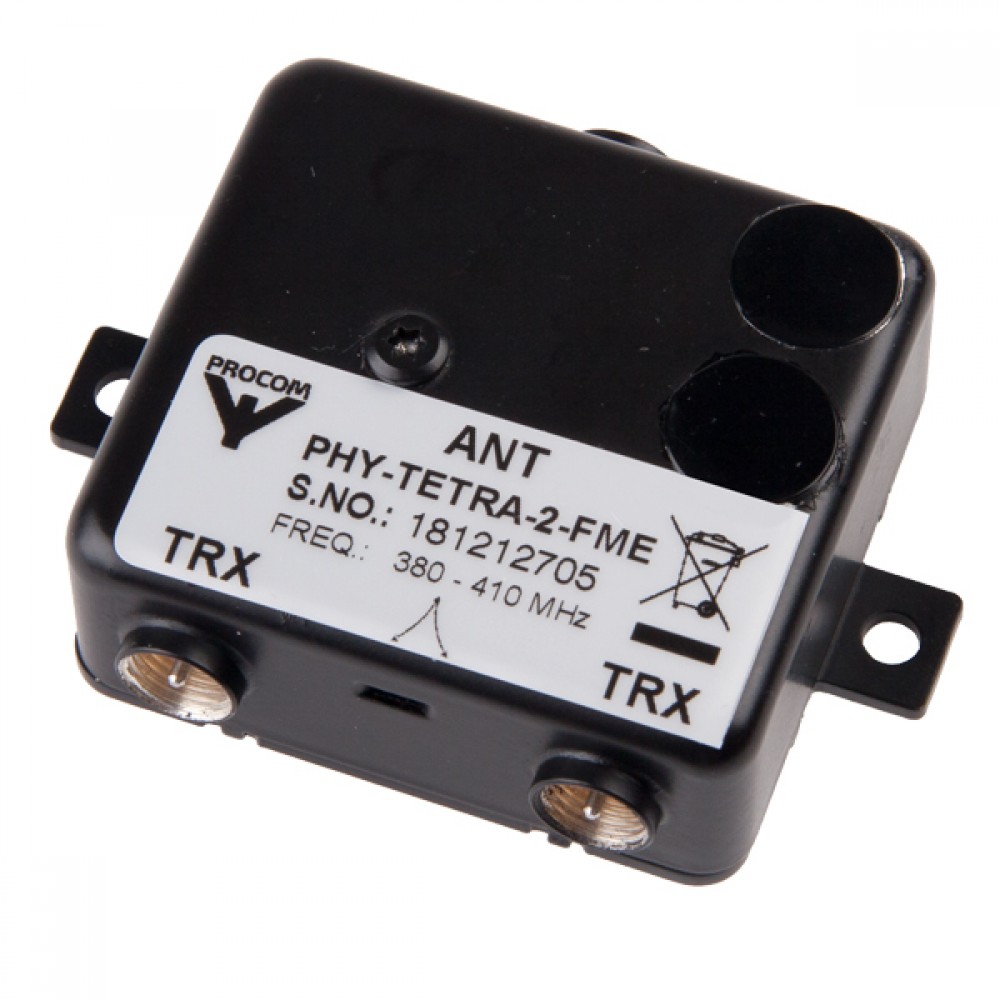

PHY-TETRA-2-FME-380-410

Combiner for coupling of two TETRA mobile transceivers on one common antenna. Factory-adjusted to 380 - 410 MHz. FME-connectors for direct connection of FME-cable without extra adapter. For parallel operation of two two-way communication radios (transceivers) where highest possible decoupling (isolation) is necessary. Integrated SWR adjustment network for optimization of isolation in the frequency range of 380 - 410 MHz or 400 - 430 MHz. Via the adjustment network the effective SWR of the antenna can be optimized and consequently the isolation between the ports of the combiner clearly improved. High isolation obtainable: Up to 60 dB (Dependent on the SWR of the connected antenna). The adjustment of the SWR adjustment network takes place via built-in variable capacitors. Max. TETRA transmitter power 2 x 10 W.
