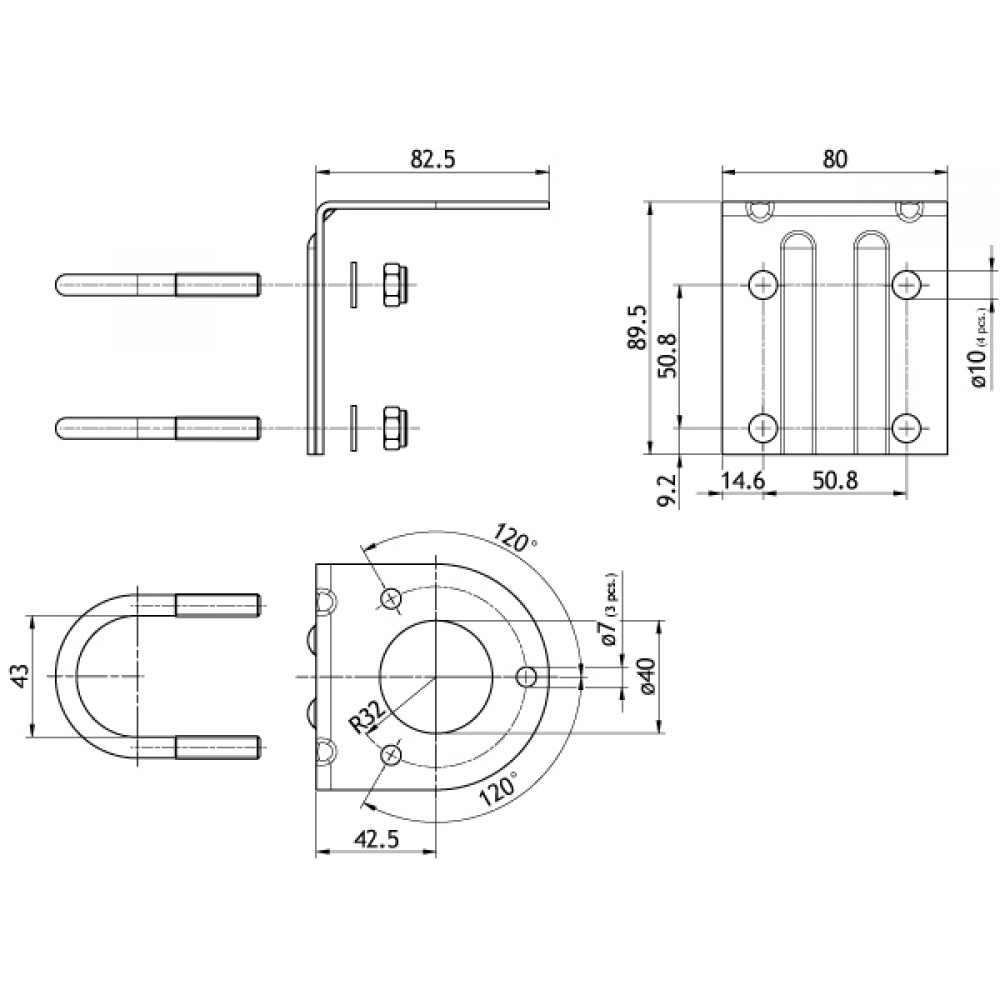

SM-MAS Mast Mounting Bracket
Mast Mounting Bracket for all “MA”-mount Based Antennas. Among these antennas are AAC 1, BCL 1-KA, AIS 2/GPS 4 and MA 70/GPS 4/...
The mast tube outer diameter must lie within the range 30 to 43 mm.
Please note that the SM-MAS should be installed at the very top of the mast tube, otherwise the antenna or part of it will be positioned parallel with the mast tube and consequently, the SWR and the radiation pattern of the antenna will be distorted.
The SM-MAS bracket, U-bolt and fittings are made of Stainless acid-proof steel.
