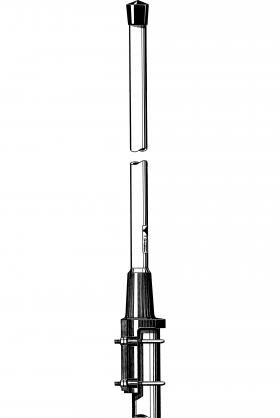

CXL 2-3C/h, 162-175 MHz
Sturdy, broad-banded 3 dBd antistatic base station antenna for mounting on mast tubes 27–65 mm, The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum. Special emphasis has been laid on obtaining a large bandwidth both in relation to SWR and gain.
The broad-banded antenna element is completely enclosed in a glass fibre shroud, which will ensure performance undisturbed by corrosive environments.
To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
This antenna is constructed to ensure long dependable service in all climates.
