Radiotype: Baseantenner, SLR1000, SLR5000, SLR8000

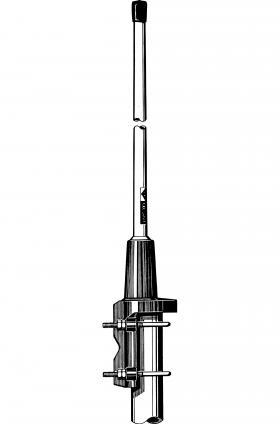

CXL 70-1LW/h, 420-470 MHz
Unity-Gain, Omnidirectional Base Station and Marine Antenna for the 450 MHz Band
CXL 70-1LW/… is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna which covers the 450 MHz band in three models.
The carefully designed, broadbanded ½ λ-dipole radiating element is made of brass tube and sealed in a high-quality conical glass fibre tube with low wind-load.Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
The cable can be led either on the outside or along the inside of the mast tube.
Large bandwidth with respect to both SWR and gain.
